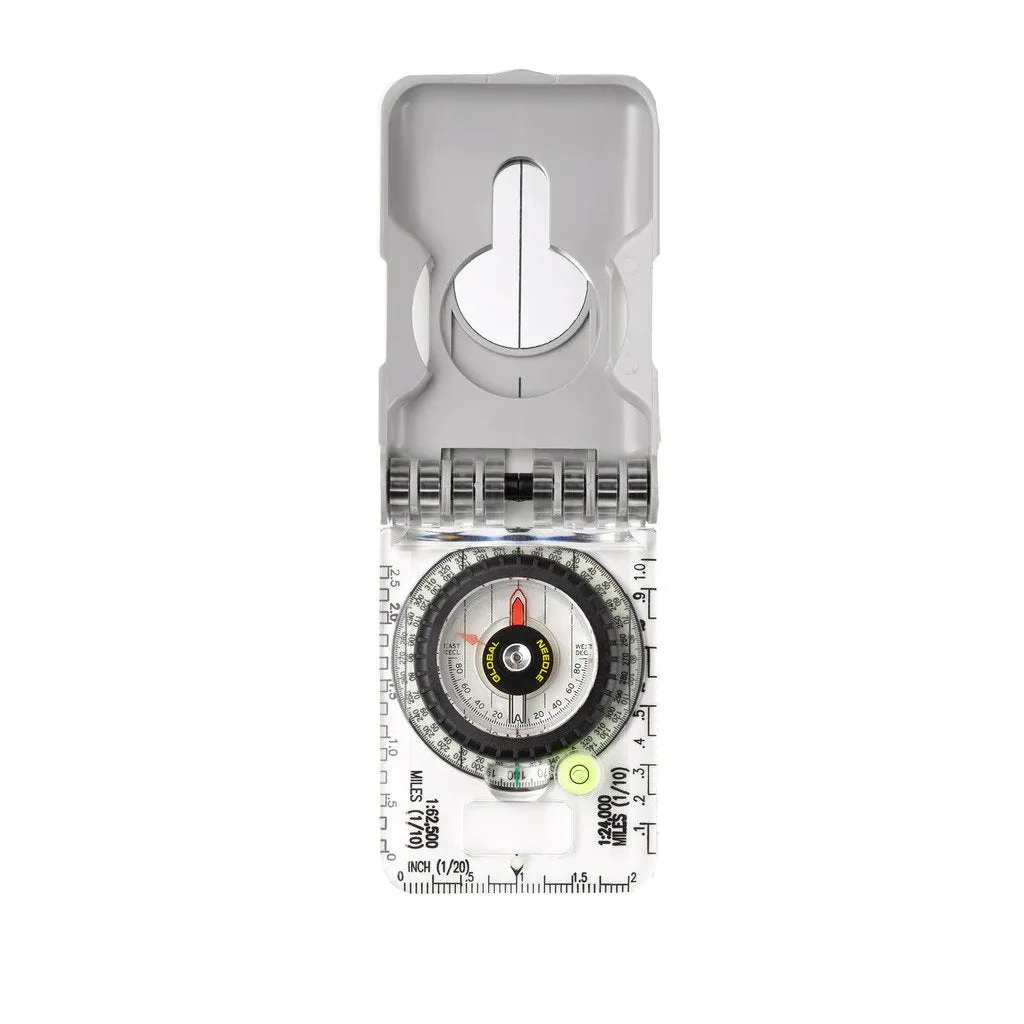

The Brunton TruArc 20 is the most advanced baseplate compass with sighting mirror, quick-reference lid, and protective rubber foot that stores reference cards with an array of scales.

SPECS

• •   dimensions: 4.1” x 2.5” x 1” | 10.4 x 6.3 x 2.5cm
  •   weight: 3.6 ounces | 102 g
  •   resolution: 1˚

FEATURES

• • TruArc™ Global Needle tilts up to 20˚ for balanced use world wide
  • Tool-free declination adjustment is simple and fast to orient magnetic north to true north
  • Meridian lines on vial assist during pre-trip planning when aligning with map grid lines

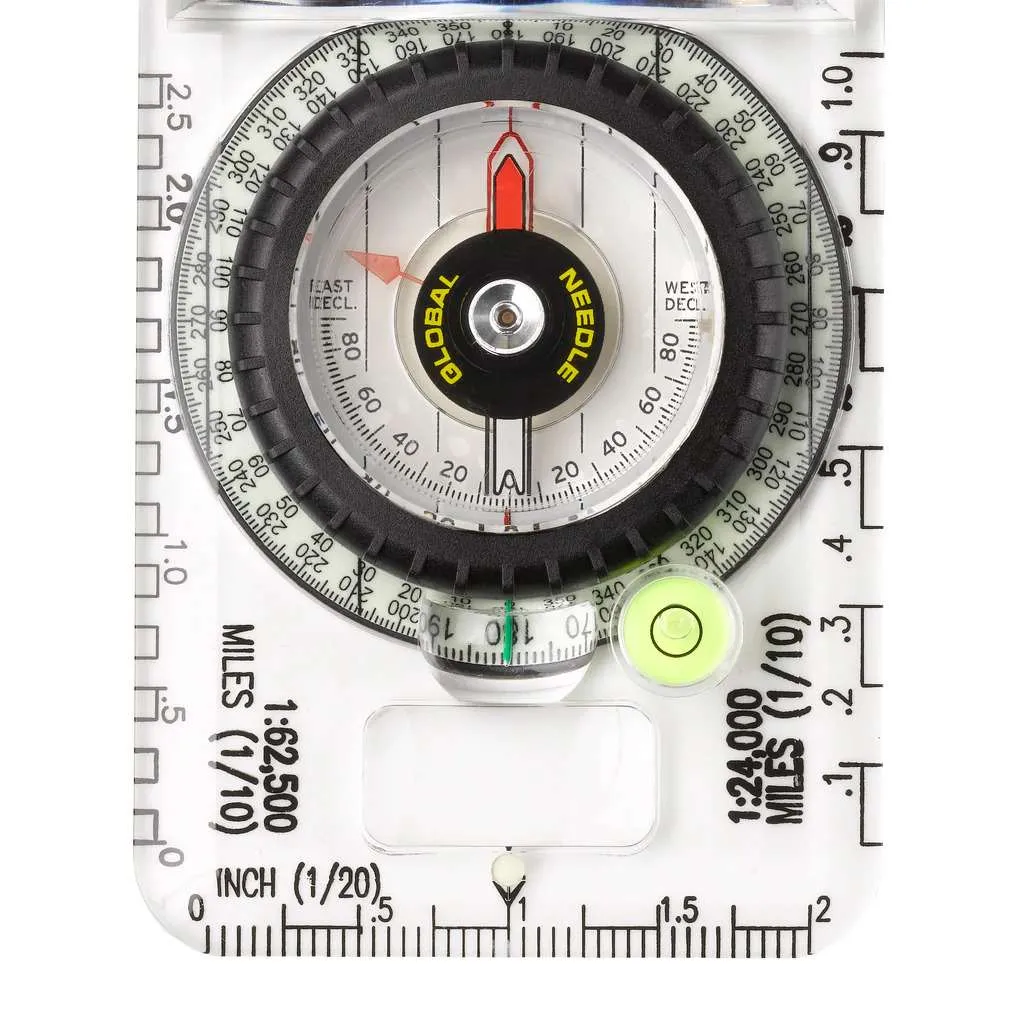

  • Inch/millimeter scales for accurate and effective map work
  • Romer scales provide maximum accuracy of latitude and longitude for easy integration with handheld GPS unit
  • Brunton EverNorth Magnet resists demagnetization over time
  • Magnified readout provides highest degree of accuracy without compromising readability
  • Dual azimuth ring includes reverse azimuth
  • Sighting mirror and sighting line integrated into the cover. Align for the most accurate bearings, whether taking or following a bearing
  • Clinometer with 2˚ resolution for measuring slope angle or gauging heights of passes, peaks or trees
  • Engineer’s ruler
  • Bubble level for absolute precision readings; keeping the compass level (not the needle level)  is a critical aspect for taking an accurate bearings
  • Map magnifier helps with the smaller details on any map
  • Quick-reference lid for easy and speedy readings
  • Cover and rubber foot protects the compass and houses reference cards
  • User-specific reference cards with scales, rulers, and useful tips and information for backcountry travel and trip planning
  • High visibility cling for enhanced performance in low light; can be removed to facilitate map use
  • 1˚ resolution azimuth ring provides precise readings
  • Made in the USA in Riverton, WY

FAQs

What are the key features of the Brunton TruArc 20 Compass?

• Global Needle: The compass features a global needle that provides accurate readings anywhere in the world.
• Adjustable Declination: It includes an adjustable declination scale for easy conversion between true and magnetic north.
• Clinometer: The compass is equipped with a clinometer for measuring angles of slope, elevation, or depression.
• Map Magnifier: It has a built-in magnifier to assist with detailed map reading.
• Indestructible Baseplate: The baseplate is durable and designed to withstand tough conditions.

How do I adjust the declination on the TruArc 20 Compass?

To adjust the declination, use the tool-free declination adjustment feature. This allows you to set the declination for your specific location, ensuring accurate navigation.

Is the Brunton TruArc 20 Compass waterproof?

Yes, the Brunton TruArc 20 Compass is designed to be waterproof, making it suitable for use in various weather conditions.

Can the TruArc 20 Compass be used in the Southern Hemisphere?

Yes, the global needle of the TruArc 20 Compass allows it to be used effectively in both the Northern and Southern Hemispheres.

What is the warranty period for the Brunton TruArc 20 Compass?

The Brunton TruArc 20 Compass typically comes with a limited lifetime warranty, ensuring long-term reliability and support.
